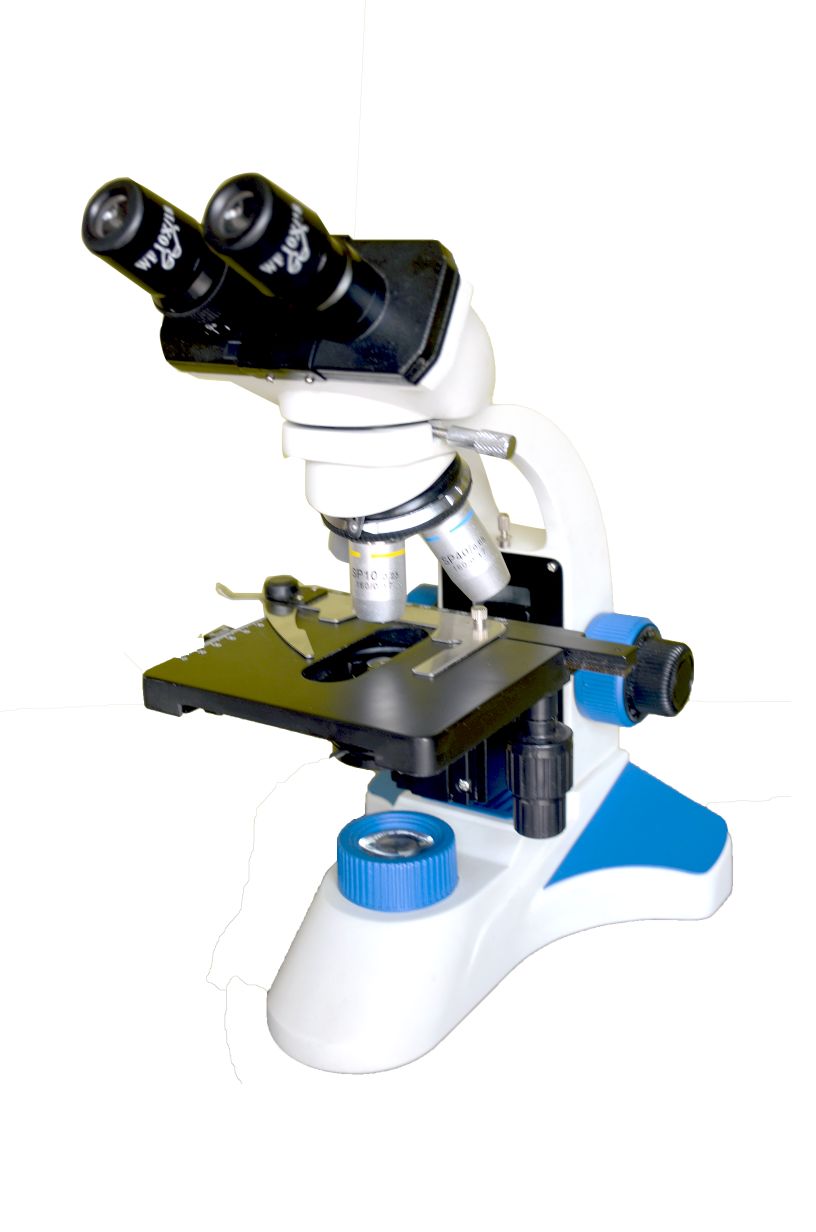

Prime 200 – Research Microscope

Stand : C Shaped, Single Mold Stand with Anti-rust materials, Ergonomic Base Design.

Viewing Head : Binocular Sliding Type Tube, 30 degree Incline, 360 degree, Interpupillary Distance 55-75mm, 360 degree rotatable and

Dioptric adjustable on Left. Anti Fungus Treated.

Eyepiece : Wield Field 10X/18 mm paired. Optional 10X/18mm, WF 15X.

Nosepiece : Quadruple Revolving Nosepiece ( Ball Bearing with Rubber Ring)

Objectives : Semi Plan Achromatic objectives 4X/N.A. 0.10, 10X/N.A. 0.25, 40X/N.A. 0.65 SL, 100X/N.A. 1.25 (SL) Oil Immersion. Optional E-Plan Achromatic Objectives.

Stage : Double Layer Mechanical Rectangular Stage, Area 132mm X 142mm. Moving Range : 75mm(X) X 40mm (Y) with graduated scales and veriners.

Focusing : Ergonomic Designed Co-axal Coarse and fine focusing system ergonomically placed knobs on both sides, on ball drive for smooth operation with tension control ring.

Condenser : Abbe Condenser N.A=1.25 with IRIS Diaphragm and filter holder, moving Up and Down rack and pinion.

Illumination : Built in Critical, Bright white LED, Brightness Adjustable. Power Input 220V, 50HZ. Optional LED with Battery Backup.

Package Contents : Thermocol Box, with Operation Manual, Cleaning Cloth, with Dust Cover.

We Hari Om Lab made this unit by Y.P.Scientific Industry with ISO 9001 : 2015 certificate.
